ANSI / ASME B16.9 Cap

Manufacturer of ANSI B16.9 SS End Caps in Mumbai, India, Carbon Steel Pipe Cap Suppliers.

Check ASME B16.9 Cap dimensions & BS1640 Seamless Pipe Cap Price List, MSS SP-75 B16.9 Buttweld End Cap manufacturer in India.


B16.9 Seamless Pipe End Cap is a type of pipe fittings, that is mainly used as a plug which covers the end of a pipe.

At ASME B16.9 Cap, we produce various grades of B16.9 Buttweld End Cap. The materials used to manufacture  pipe end caps in our factory are as follows – Duplex stainless steel, Stainless steel grades such as 304, 304L, 316, 316L, 321, 347, 317L, 310S, 904L, as well as different alloy grades such as -  Alloy 201, Alloy 800H, Alloy C276, Cupro Nickel, Alloy 400, Alloy 625 and Alloy 600.  Our stocklist at  ASME B16.9 Cap includes both  stainless steel pipe caps as well as Stainless Steel Pipe Cap that have been produced in standard sizes and grades.  Besides producing Carbon Steel End Cap in various shapes like – round, square, rectangular ones, we manufacture products as required by the buyer based on  customized shapes.


As their name suggests, the primary function of the  Pipe Ends, or ASME B16.9 Cap, is to act as a seal to the end of a pipe. Primary function of SS End Caps is to maintain a waterproof piping network. In addition to this, the other roles of the ANSI B16.9 Pipe Cap Fittings include -  to resist moisture, chemicals and weather. The  ASME B16.9 end cap dimensions manufactured in our factory is both  flexible as well as has the ability to release pressure. We also maintain a stocklist of threaded ANSI B16.9 Pipe Caps to avoid the pipe from getting damaged or cracked . The End caps we produce are available various sizes in materials that have good resistance to high temperature .


ASME B16.9 Cap Manufacturer in India

ASME B16.9 Cap

Stainless Steel Pipe Cap Suppliers In Mumbai

Stainless Steel Pipe Cap

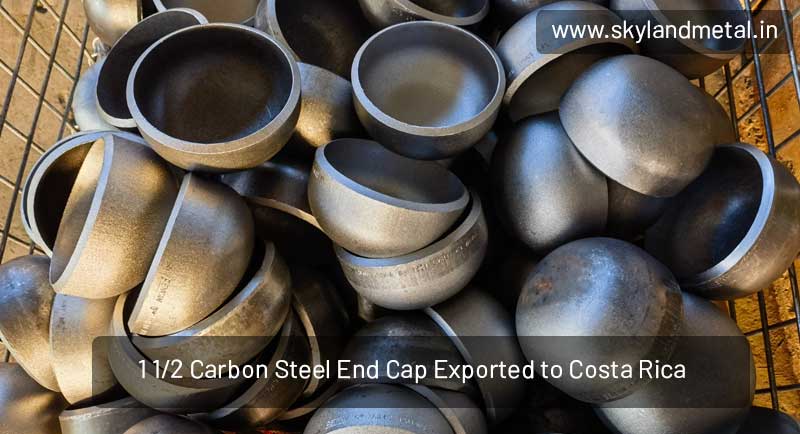

Carbon Steel End Cap Distributor In Nigeria

Carbon Steel End Cap

Carbon Steel End Cap Exporter in India, 1/2 to 48 Inch B16.9 Seamless Pipe End Cap Price List in Mumbai, ASME B16.9 SS End Caps manufacturers, Stainless Steel Pipe Cap stockholder.

Pipe ends are typically available in the following Dimensions - i.e. ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Up on request or if mentioned in the order, we provide a host of Value Added Services. These services include various processes where the surface of the  ASME B16.9 pipe cap is surface treated by either mechanical processes such as , Sand Blasting, Threading, Soldering or chemical processes such as Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polishing.

The range of ASME B16.9 Cap dimensions we produce includes a wide range of pipe cap fittings in various like  -  Stainless Steel Butt-weld Pipe Cap, Carbon Steel Butt-weld Pipe Cap, Alloy Steel Butt-weld Pipe Cap, etc. Our products like the ASME B16.11 Threaded Pipe Cap as well as other fitting are manufactured using superior quality materials. We also have through a rigorous quality check at all stages of production in order to ensure that the customer receives the best quality ASME B16.9 end cap.  All types of pipe fittings such as ASME B16.9 cap manufactured in our factory  are in compliance with international quality standards. Therefore these ANSI/ASME B16.9 Butt-weld Pipe Cap produced in our factory are known for their good properties such as good resistance to corrosion as well as a durable and sturdy construction.

We provide the highest quality Alloy 20 Buttweld End Cap, Steel Butt weld Pipe Caps & Socket Weld End Cap in India, Skyland Metal holds a large stock of Copper Nickel End Cap, Buttweld End Cap Fitting, Hastelloy C22 End Caps & Pipe Cap Fittings. Producing special sizes of Inconel Buttweld End Cap, ASME B16.9 Buttweld End Cap & Stainless Steel Pipe End Caps for piping connection.


What is ASME B16.9 Cap?


ASME B16.9 Cap

Sizes of ANSI B16.9 cap generally produced by our factory falls in the size range between ½ inch NB TO 36 inch NB and the ASME B16.9 cap weight are available in the following  Wall Thickness Schedule 5S, 10S, 20S, S10, STD, 40S, S40, S60, XS, 80S, S20, S30, S80, S100, S120, S140, S160, XXS and etc. We manufacture different ASME B16.9 pipe cap dimensions and in various ends such as -  Dish Cap, End Pipe, Pipe Cap, and Lateral Cap


ASME B16.9 Pipe Cap Price List


SR NO Description Price (USD$)
1 CAP: 1/2 NPS, CAP, BW, CL3000#, /ISO 15156, ASME B16.9 8 NOS  $14.00
2 CAP: 1/ 2 NPS, CAP, BW, CL6000#, /ISO 15156, ASME B16.9 4 NOS  $42.00
3 CAP: 1/ 2 NPS, CAP, BW, CL3000#, ASME B16.9 8 NOS  $76.00
4 CAP:1 NPS, CAP, BW, CL3000#, ASME B16.9 8 NOS  $78.00

Please note this is an approx Price of ASME B16.9 Cap in India. For final ASME B16.9 pipe cap Price List Please Call on +91 22 66109735 or drop an Email to sales@skylandmetal.in.


ANSI B16.9 Pipe Cap Fitting Specification


Specifications ASME B16.9 Cap
ASME B16.9 Cap size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
ASME B16.9 Cap Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
Bw Pipe Cap Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Cap Bw Sch 80 Types Seamless / ERW / Welded / Fabricated Pipe Fittings
ASME B16.9 pipe cap Type DN15-DN1200
ANSI B16.9 Pipe Cap Fittings Connection Welding
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
ASME B16.9 Buttweld End Cap Size Range ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
SS End Caps Fittings Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process for Carbon Steel End Cap Push, Press, Forge, Cast, etc.
Cap Bw Sch 80 Fittings Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills For Stainless Steel Pipe Cap Japanese, Indian, USA, Korean, European, Ukraine, Russian
Key markets and industries for Pipe Cap
  • Bitumen upgraders.
  • Heavy oil refineries.
  • Nuclear power (mostly seamless).
  • Petrochemicals and acids.
ASME B16.9 Seamless Pipe End Cap Application
  • Fittings To Connect Pipe & Tubes in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc
  • ASME B16.9 Schedule 10 Pipe Cap are an economical alternative for lower-pressure applications.
  • ANSI B16.9 Schedule 40 Pipe Cap have a thicker wall for higher-pressure applications.
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175

ASME B16.9 Buttweld End Cap Material


Prestige quality ASME B16.9 Cap manufacturers in India offer these ASME B16.9 Cap dimensions in DIN, EN, BS, ISO, JIS or ANSI standard.

Carbon Steel End Cap
  • ASTM A105
  • ASME SA105
  • DIN 1.0402
  • DIN 1.0460
  • DIN 1.0619
  • ASTM A105N
  • ASME SA105N
  • ASTM A350 LF2
  • ASME SA350
  • High Yield CS ASTM A694
Stainless Steel Pipe Cap
  • ASTM A182 F304
  • ASTM A182 F304L
  • ASTM A182 F316
  • ASTM A182 F316L
  • ASTM A182 F317
  • ASTM A182 F317L
  • ASTM A182 F321
  • ASTM A182 F321H
  • ASTM A182 F347
  • ASTM A182 F347H
Alloy Steel Pipe Cap
  • ASTM A182 F5
  • ASTM A182 F9
  • ASTM A182 F11
  • ASTM A182 F22
  • ASTM A182 F91
Inconel Pipe End Cap
  • Inconel 600
  • Inconel 601
  • Inconel 625
  • Inconel 718
  • Inconel x750
Copper Pipe Cap Fittings T1, T2, C10100, C10200, C10300, C10400, C10500, C10700, C10800, C10910,C10920, TP1, TP2, C10930, C11000, C11300, C11400, C11500, C11600, C12000,C12200, C12300, TU1, TU2, C12500, C14200, C14420, C14500, C14510, C14520, C14530, C17200, C19200, C21000, C23000, C26000, C27000, C27400, C28000, C33000, C33200, C37000, C44300, C44400, C44500, C60800, C63020, C68700, C70400, C70600, C70620, C71000, C71500, C71520, C71640, etc
Copper Nickel Bw Pipe Cap Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Brass Bw Cap 3602 / 2604 / H59 / H62 / etc.
Hastelloy Cap Bw Sch 80 Hastelloy C276 (UNS N10276), C22 (UNS N06022) Pipe, C4 Pipe, C2000 Pipe End, B2 Pipe Fittings, B3, X Bw
Monel Cap Bw Sch 80 Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500) Pipe End Cap
Alloy 20 Pipe Cap Fittings Carpenter® 20 Alloy Caps Bw Sch 80, Alloy 20Cb-3 Bw Pipe Caps
Aluminium Pipe End Cap 5052 /6061/ 6063 / 2017 / 7075 / etc.
Nickel Bw Pipe Cap Nickel 200, Nickel 201 Bw Caps
Duplex Cap Bw Sch 80 S31803 / S32205 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Super Duplex Cap S32750 / S32760 A182 Gr F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61
Incoloy Pipe Cap Fittings Incoloy 800 Bw Caps, Incoloy 800H Caps, Incoloy 800HT (UNS N08800) Pipe End Caps, Incoloy 825 (UNS N08825) Bw Pipe Caps
254 Smo Pipe Cap SMO 254/6Mo Pipe Caps Fittings, UNS S31254 Caps, DIN 1.4547 Pipe End Caps
Nimonic Cap Bw Sch 80 Nimonic 75 Caps, Nimonic 80A Caps, Nimonic 90 Bw Pipe Caps
Other Bw Cap material Tin bronze Pipe End Cap, Alumunum bronze Cap Bw Sch 80, Lead bronze Cap Bw Sch 80
Titanium Bw Pipe Cap
  • ASTM B381 Titanium Gr. 1 Pipe Caps
  • ASTM B381 Titanium Gr. 2 Pipe Caps
  • ASTM B381 Titanium Gr. 4 Pipe Caps
  • ASTM B381 Titanium Gr. 5 Pipe Caps
  • ASTM B381 Titanium Gr. 7 Pipe Caps

Skyland Metal is an ISO certified ASME B16.9 Cap Manufacturers & distributor in India

Skyland Metal is a manufacturer and supplier of ANSI B16.9 Pipe Cap Fittings & Check ASME B16.9 Cap dimensions, offering in all Ratings up to 2500#, built a distribution network with more then 65 countries globally.


ASME B16.9 Cap Types


ASME B16.9 Caps SCH 10

ASME B16.9 Cap SCH 10
A403 WP316, 14 Inch, SCH 100 Caps, A403 WP316L, B16.9, buttweld

ASME B16.9 pipe caps 40

ASME B16.9 pipe cap 40
SCH XS, 26 Inch, Black Surface, ASTM A234 WPB Cap, ASME B16.9, BW

ANSI B16.9 caps Sch 80

ANSI B16.9 cap Sch 80
ANSI B16.9, 26 Inch, Carbon Steel Pipe Cap, BW

ASME B16.9 SS End Caps

ASME B16.9 SS End Caps
12 Inch, SCH 40, ASTM A234 WPB Pipe Cap, BW


ANSI B16.9 Seamless Pipe End Caps

ANSI B16.9 Seamless Pipe End Cap
ASME B16.9, SCH 160, ASTM A403 WP304L Cap, SS

MSS SP43 SS End Caps

MSS SP43 SS End Caps
Buttweld, SCH 60, ASTM A234 WPB Pipe Cap, 14 Inch

Buttweld End Caps

Buttweld End Cap
ASTM A403 WP316L, Buttweld Pipe Cap, BW, 18 Inch

DIN 28011 Pipe End Cap

DIN 28011 Pipe End Cap
4 Inch, SCH 80, ANSI B16.9 A234 WP11 Cap, BW


Carbon Steel End Cap

Carbon Steel End Cap
Buttweld End Cap, Galvanized, 8 Inch, ASTM A234 WPB

Stainless Steel Pipe Cap

Stainless Steel Pipe Cap
ASTM A403 WP304L, Butt Weld, Stainless Steel Caps

A403 Gr WP304 Seamless Pipe End Cap

A403 Gr WP304 Seamless Pipe End Cap
ASTM A234 WPB, Butt Weld, Pipe Caps, ANSI B16.9

A234 Gr WPB SS End Caps

A234 Gr WPB SS End Caps
BW, SCH 60, ASTM A234 WPB Pipe Cap, 14 Inch


AN ISO certified company supply various Butt Weld End Cap & approved 304 SS End Caps to the regional oil companies such as ADNOC, SABIC, SAUDI ARAMCO, EIL, KNPC, KOC, PDO and QP through their approved vendors.


ASME B16.9 Cap Dimensions


Check ASME B16.9 end cap dimensions

ASME B16.9 Cap Dimensions
NPS O.D.
D
LENGTH
H
LENGTH
H1
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267
28 711 267
30 762 267
32 813 267
34 864 237
36 914 267
38 965 305
40 1016 305
42 1067 305
44 1118 343
46 1168 343
48 1219 343

ASME B16.9 Pipe Cap Dimensions


View ASME B16.9 pipe cap dimensions


ASME B16.9 Cap Dimensions

CAPS – ANSI B 16.9 dimension

inches mm Height
D E
1/2 15 21,34 25,40
3/4 20 26,67 31,75
  25 33,40 38,10
1 1/4 32 42,16 38,10
1 1/2 40 48,26 38,10
2 50 60,32 38,10
2 1/2 65 73,02 38,10
3 80 88,90 50,80
3 1/2 90 101,60 63,50
4 100 114,30 63,50
5 125 141,30 76,20
6 150 168,27 88,90
8 200 219,07 101,60
10 250 273,05 127,00
12 300 323,85 152,40
14 350 355,60 165,10
16 400 406,40 177,80
18 450 457,20 203,20
20 500 508,00 228,60
22 550 558,80 254,00
24 600 609,60 266,70
28    700 711,20 266,70
Dimension in mm

ASME B16.9 Cap Weight Chart


Check ASME B16.9 cap weight below

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85
12 13.61 16.33 43.09
14 16.33 20.41
16 18.14 24.49
18 24.49 32.66
20 34.02 39.01
22 42.64 56.7
24 43.54 58.97
26 53.98 72.12
30 78.02 103.87
NPS STD XS SCH 160 XXS

Dimensional Tolerances of ANSI B16.9 Pipe Cap Fittings


DIMENSIONAL TOLERANCES – CAPS
For all fittings Caps
Nominal Pipe Size (NPS) Outside Ø at Bevel Inside Ø at End Wall Thickness
t / t1
Overall Length E
1/2 a 2 1/2 1 0,8 Not 4
3 a 3 1/2 1 1,6 less 4
4 +2 -1 1,6 than 4
5 a 6 +3 -1 1,6 87,50% 7
8 2 1,6 of nominal 7
10 +4 -3 3,2 tickness 7
12 a 18 +4 -3 3,2   7
20 a 24 +6 -5 4,8   7
26 a 30 +7 -5 4,8   10
32 a 48 +7 -5 4,8   10

Exporter & manufacturer of Buttweld End Cap in India, ready stock of ANSI B16.9 Nickel Alloy 200 End Caps & ASME B16.9 Monel Buttweld Cap as per MSS SP-75 & BS1640, check Duplex Steel End Cap Fittings weight chart, dimensions, sizes, specification, tolerances, material, products, standards & codes.

Client Reference For ASME B16.9 Buttweld End Cap


Ennore Petrochemical Cluster Project

Ennore Petrochemical Cluster Project (India), Chennai, India


Ophir Oil Field Development

Ophir Oil Field Development,
Offshore Peninsular, Malaysia


Chevron Indonesia Deepwater Development Project

Chevron Indonesia Deepwater Development Project,
Jakarta, Indonesia


Batangas LNG Terminal

Batangas LNG Terminal, Batangas, Philippines


Khulud Tight Gas Project

Khulud Tight Gas Project,
Yibal, Oman


Bul Hanine Redevelopment

Bul Hanine Redevelopment,
Qatari Coastline, Qatar


Zuluf Field Expansion Project

Zuluf Field Expansion Project,
Arabian Gulf, Offshore Saudi Arabia (KSA)


Abu Dhabi Gas Distribution Network Pipeline Project

Abu Dhabi Gas Distribution Network Pipeline Project,
Abu Dhabi, United Arab Emirates (UAE)


KrisEnergy’s Cambodia Oil Project

KrisEnergy’s Cambodia Oil Project,
Cambodia, Thailand


Dung Quat Refinery Project

Dung Quat Refinery Project,
Quang Ngai, Vietnam


Bahrain Deep Gas Exploration Project

Bahrain Deep Gas Exploration Project, Manama, Bahrain


Al-Zour New Refinery Project

Al-Zour New Refinery Project,
Zour, Kuwait



Looking for ASME B16.9 pipe cap manufacturer in India? buy directly from ASME B16.9 end cap manufacturers in Mumbai for lowest price. High quality ANSI B16.9 cap suppliers
ASTM A403 SS Pipe End Cap Wholesaler, PDO approved ANSI B16.9 Pipe Cap Fittings Traders, exporter of SS Butt weld Pipe Cap, ANSI B16.9 End Pipe Cap stockist in UAE, BS1640 Buttweld End Caps Fittings dealer, For best deal buy from ANSI B16.9 Pipe Cap Fittings/ ASME B16.9 cap anufacturers in India.

We offer a wide range of Alloy Steel End Caps, Stainless Steel End Cap, ASME B16.9 End Pipe Caps, Seamless Pipe End Cap & Welded Pipe End Caps in Qatar, UAE, Kuwait, Saudi Arabia, Oman, Melbourne, Brisbane, Perth, Australia, Dubai (UAE), Malaysia, Singapore, UK, Cebu - Philippines, Deira, Europe, Egypt, Gauteng - South Africa, Jubail - Saudi Arabia, Nigeria, Pretoria - South Africa, Russia, Romania, Spain, Salem -Tamil Nadu, Turkey, Taiwan, USA, Sharjah - UAE.
